【客戶故事】七年，始終如一的選擇 | 【Client Story】Seven Years, Still the One

2026-09-09 09:49:08 來源：同大機械閱讀量：11447 評論

　　走進這家韓資戶外家居廠的生產車間，一排排TDW-250A整齊列隊，氣勢沉穩。

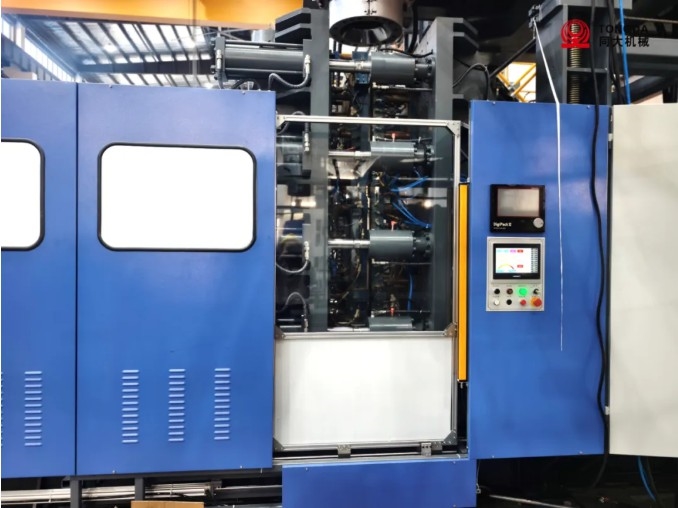

　　Stepping into the production workshop of this Korean-owned outdoor furniture manufacturer, TONGDA TDW-250A extrusion blow molding machines stand in neat rows, solid and imposing.

　　從2019年第一臺設備投入使用，到如今近40臺同大機械設備持續運行，這些機器已經成為車間里熟悉的“老伙伴”。它們見證了客戶產能的階梯式躍升，也陪伴著一張張戶外桌面板走向全球市場。

　　From the first machine installed in 2019 to nearly 40 units of TONGDA equipment running today, these machines have become familiar "old partners" on the shop floor. They have witnessed the customer's stepped-up capacity expansion and accompanied countless outdoor table panels to global markets.

　　交付一臺設備，是一次合作的開始；

　　被持續選擇，才是真正的認可。

　　Delivering a machine is the start of a partnership; being chosen again and again—that is the true recognition.

一張桌面板的“全球標準”
The Global Standardfor a Table Panel

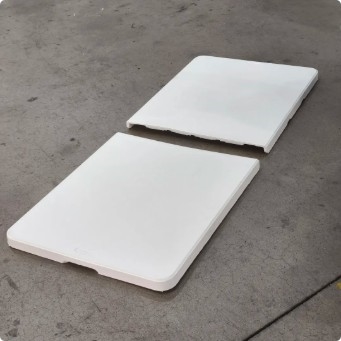

　　大尺寸戶外桌面板要拿到海外市場的入場券，得過一道又一道品質關：尺寸公差、平面度、結構強度、外觀一致性——每一項細微指標，都決定著產品能否通過客戶驗貨。

　　Large-format outdoor table panels must clear one quality hurdle after another to earn their place in overseas markets: dimensional tolerance, flatness, structural strength, surface consistency—every subtle indicator determines whether the product passes the customer's inspection.

　　從熔體塑化、型坯擠出，到合模、射料，任何一個環節的微小波動，都會最終呈現在產品表面。

　　From melt plasticization, parison extrusion, to mold clamping and injection, a slight fluctuation at any step will ultimately show up on the finished surface.

　　真正考驗設備的，從來不是一時的開機順利，而是對每一個變量長期、穩定的精準掌控。

　　What truly tests a machine is not a smooth start-up, but precise, unwavering control over every variable——day in, day out.

憑什么讓客戶一次次追加？
Why Do CustomersKeep Reordering?

　　客戶七年內持續購買同大機械TDW-250A桌面板產線，為什么？

　　三個字：穩、準、省

　　This customer has been purchasing TONGDA's TDW-250A table panel production line for seven consecutive years.

　　why?

　　Stability. Precision. Efficiency.

穩

　　在于對每一克材料的精準控制

　　Stability comes from precise control over every gram of material.

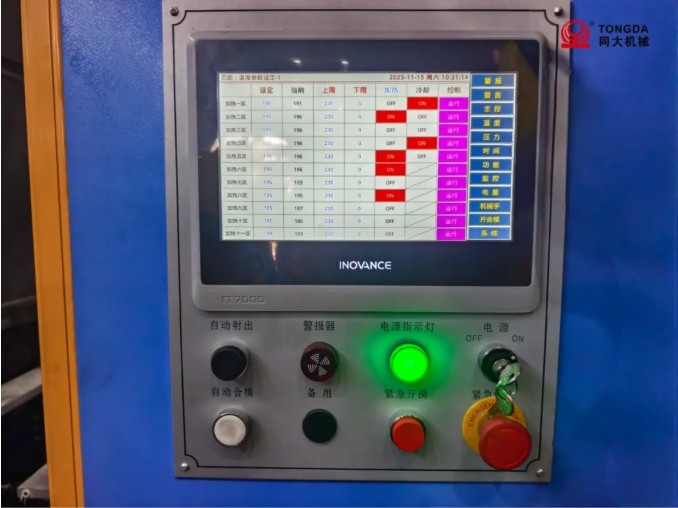

　　TDW-250A搭載三菱PLC控制系統，讓各動作無縫銜接；配合日本MOOG 100點油壓伺服厚薄控制與PID溫控模塊，對型坯壁厚及各區溫度進行精細調節。

　　The TDW-250A extrusion blow molding machines is equipped with a Mitsubishi PLC control system for seamless coordination of all actions, paired with a Japan MOOG 100-point servo parison control and PID temperature modules to fine-tune wall thickness and zone temperatures.

　　正是這種精細管理，讓首批設備連續運行兩年后，品質表現始終如一。

　　This level of precision kept product quality consistently high even after two years of continuous operation.

2021年客戶第二批采購時，毫不猶豫的再次選擇同大機械。

　　In 2021, the customer placed a second order without hesitation.

　　準

　　在于鎖模力的均衡與克制

　　Precision lies in balanced, controlled clamping force.

　　TDW-250A采用無拉桿開合模結構，銷鎖配合小油缸驅動，將1200KN鎖模力均勻作用于模具表面，避免傳統拉桿結構易產生的局部應力集中，有效減少飛邊，提升產品邊緣及合縫處的成型質量。

　　The TDW-250A extrusion blow molding machines features a tie-bar-less clamping structure with pin-lock and small-cylinder actuation, distributing 1,200 KN of clamping force evenly across the mold surface—eliminating the localized stress concentration common in traditional tie-bar designs, minimizing flash, and improving edge and parting-line finish.

均勻的鎖模力換來穩定的出品，這也是為什么客戶第三次采購時，直接把訂單量提到了10臺。

　　This consistent output quality is exactly why the customer raised their third order to 10 machines.

飛邊處理更輕松，省力且高效

　　Flash removal is easier, faster, and more efficient.

　　省

　　在于115-118秒的穩定節拍

　　Efficiency means a stable cycle time of 115–118 seconds.

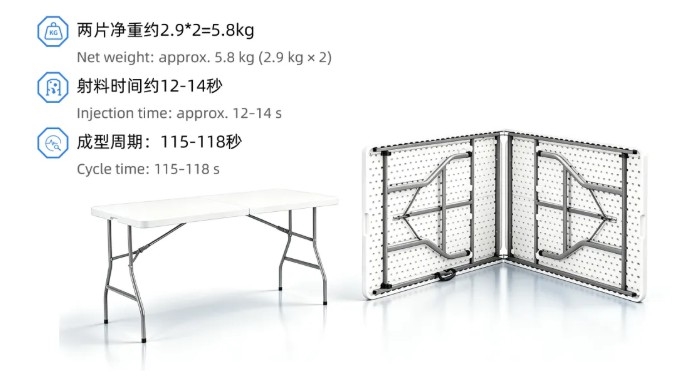

　　一模兩出，單模次同時完成兩片桌面板成型，單模兩片凈重約5.8kg，射料時間約12-14秒。設備不停，訂單不斷。

　　Two cavities per mold, two panels per cycle, net weight of 5.8 kg per cycle, injection time of 12–14 seconds.

　　產能需求大幅拉升時，客戶的回應干脆利落：再訂10臺。

　　When production demand surged, the customer's response was decisive: an order for 10 more machines.

多次復購背后，是看得見的信任
What's Behind the Repeat Orders for the Same Equipment? Trust.

　　這份信任，是從第一批設備進廠開始的。期間也經歷過波折，但同大機械的回應，讓每一次波折都成了信任加深的契機。

　　This trust started with the very first machine. There were hiccups along the way, but TONGDA's response turned every challenge into a reason for deeper trust.

　　第一批設備投產后，實際生產周期與出廠調試周期有差距?？蛻魧υO備和工藝尚不熟悉，遇到問題第一時間找同大機械。當?shù)剞k事處當天就派人到了現場，后續銷售服務部、研發中心的技術力量也陸續加入，團隊直接駐扎在客戶工廠，反復驗證、逐項排查。

　　After the initial machines went into production, the actual cycle time deviated from the commissioning target. The customer was still unfamiliar with the equipment and process—and whenever issues arose, they called TONGDA. The local office dispatched engineers the same day, followed by technical support from the sales service department and R&D center. The team stayed on-site at the customer's factory, running tests, monitoring parameters, and troubleshooting step by step.

　　很快找到問題所在——模具冷卻效率。同大機械并沒有停留在單一環節的調整，而是梳理了整個冷卻鏈路，從設備管路到模具水路，逐段優化，最終給出了一套兼顧設備與模具適配的系統性解決方案。

　　The root cause was quickly traced to mold cooling efficiency. TONGDA didn't just tweak one component—we reviewed the entire cooling chain, from machine piping to mold water circuits, optimizing each segment until we delivered a comprehensive solution that aligned equipment performance with mold requirements.

　　問題解決了，信任也扎下了根。從那以后，客戶幾乎每年都有復購，設備一批批進場，產線一點點擴大。單筆10臺的大訂單有過兩次，更多是三五臺的持續補充——每一次下單，都是對設備表現和售后服務的一次認可。

　　The problem was solved—and trust took root.From that point on, the customer has placed repeat orders every single year. Machines arrived batch by batch; production lines grew step by step. There were two large orders of 10 units each, with more smaller 3-to-5 unit orders in between. Every order is a vote of confidence in the equipment's performance and the service behind it.

　　如今，這批設備一直穩定運行，生產周期保持在115-118秒。

　　Today, the very first batch of machines continues to run reliably, maintaining a cycle time of 115–118 seconds.

　　從第一臺設備進廠的謹慎試探，到一次次的追加復購，這段合作走過的每一步，都是客戶用日復一日的運轉檢驗之后，給出的答案。

　　七年，近40臺。

　　同大機械，將繼續以經得起檢驗的裝備，陪伴客戶走得更遠。

　　From the cautious first installation to repeated orders, every step of this partnership has been validated by the customer's day-in, day-out production.

　　Seven years. Nearly 40 machines.

　　TONGDA will continue to stand behind equipment that withstands the test of time—and walk with our customers,further and further down the road.
